Description
Oil filter relocation plate set for custom installations, with AN-10 connections. Hoses and hose-end fittings are sold separately. Check engine and oil-filter compatibility before ordering.
Key features

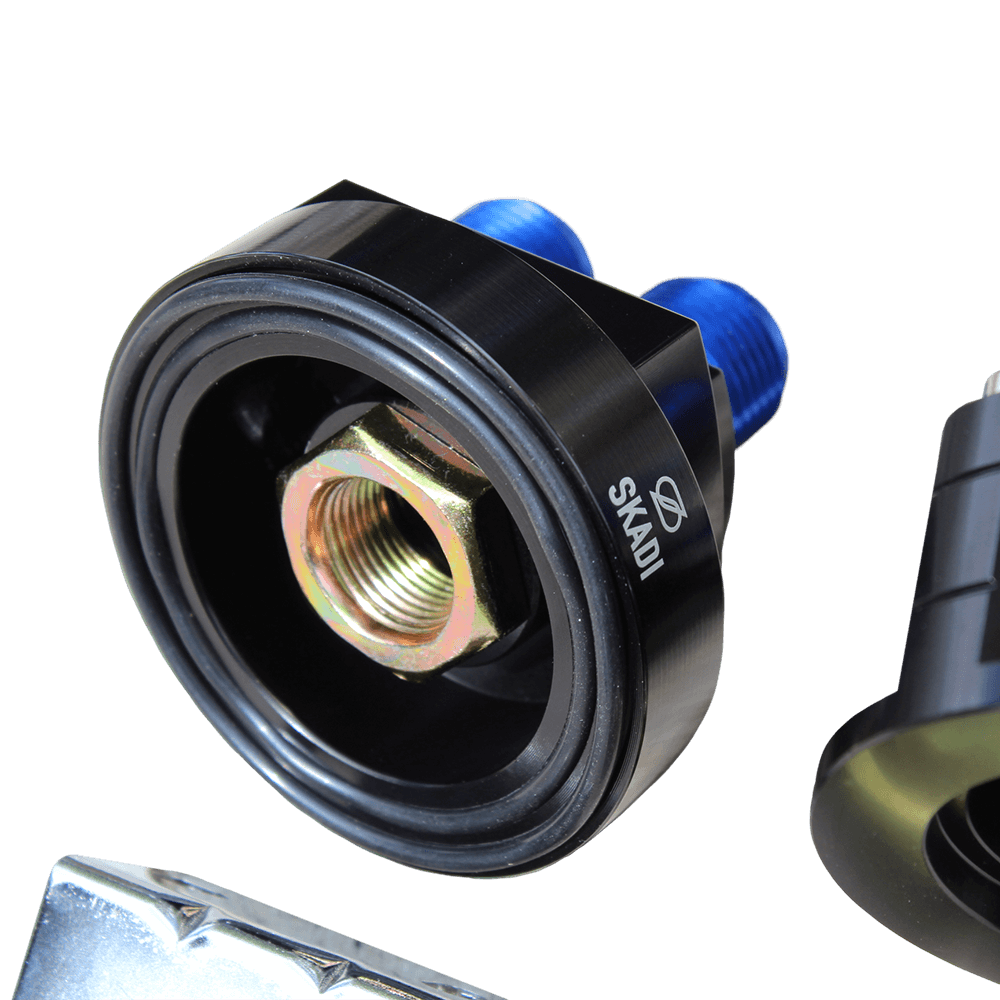

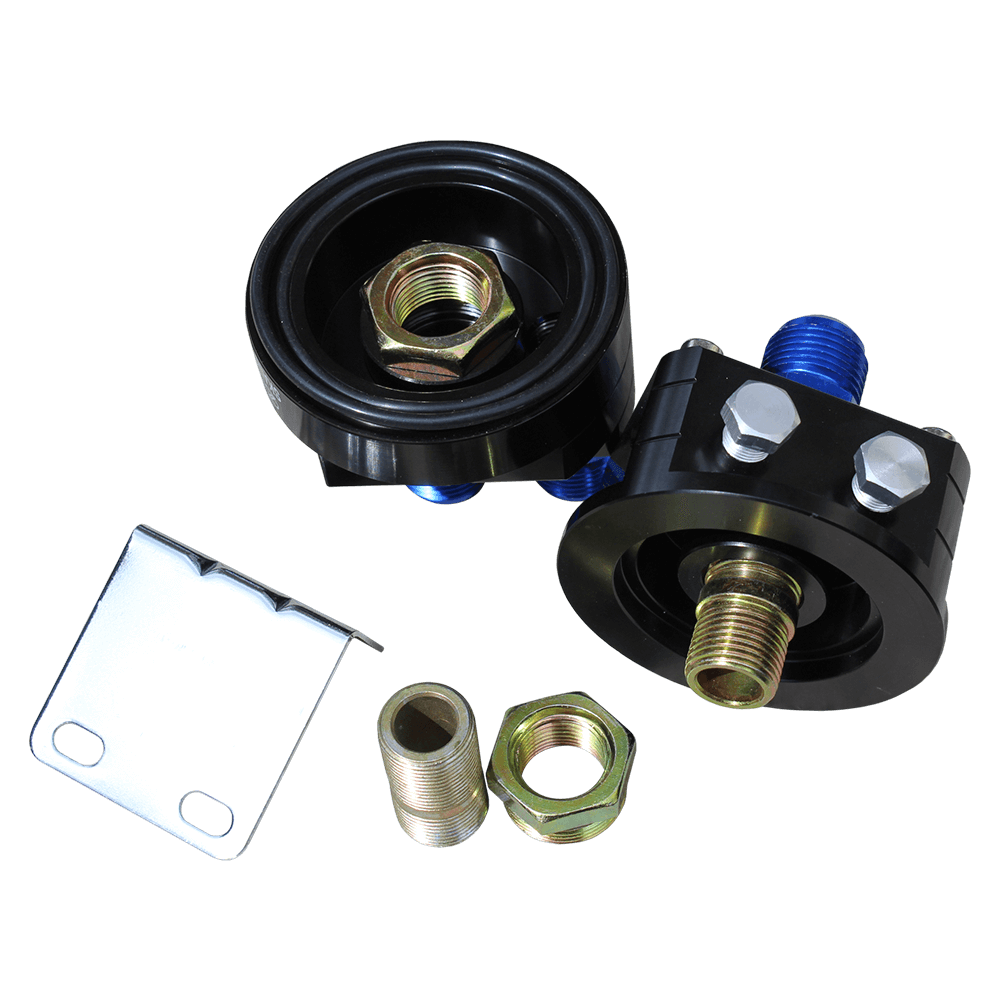

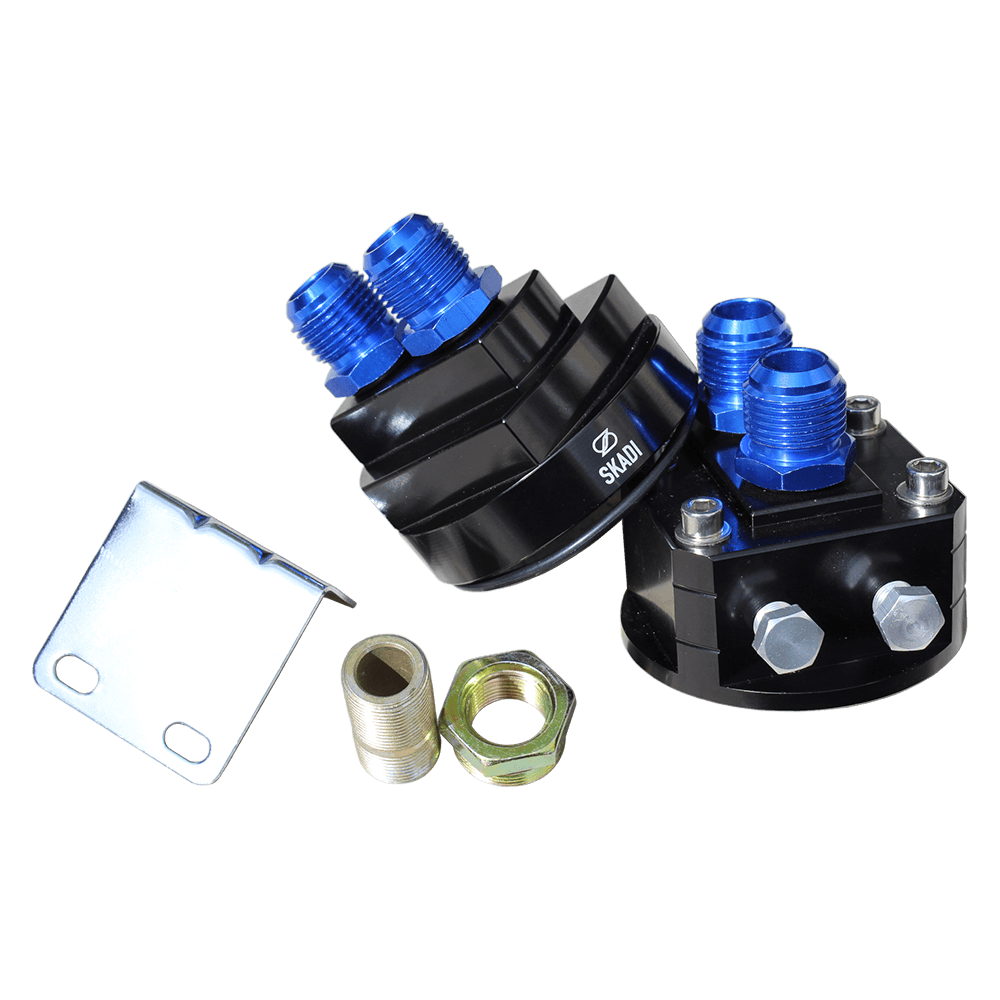

- Oil-filter relocation plate set
- AN-10 connections

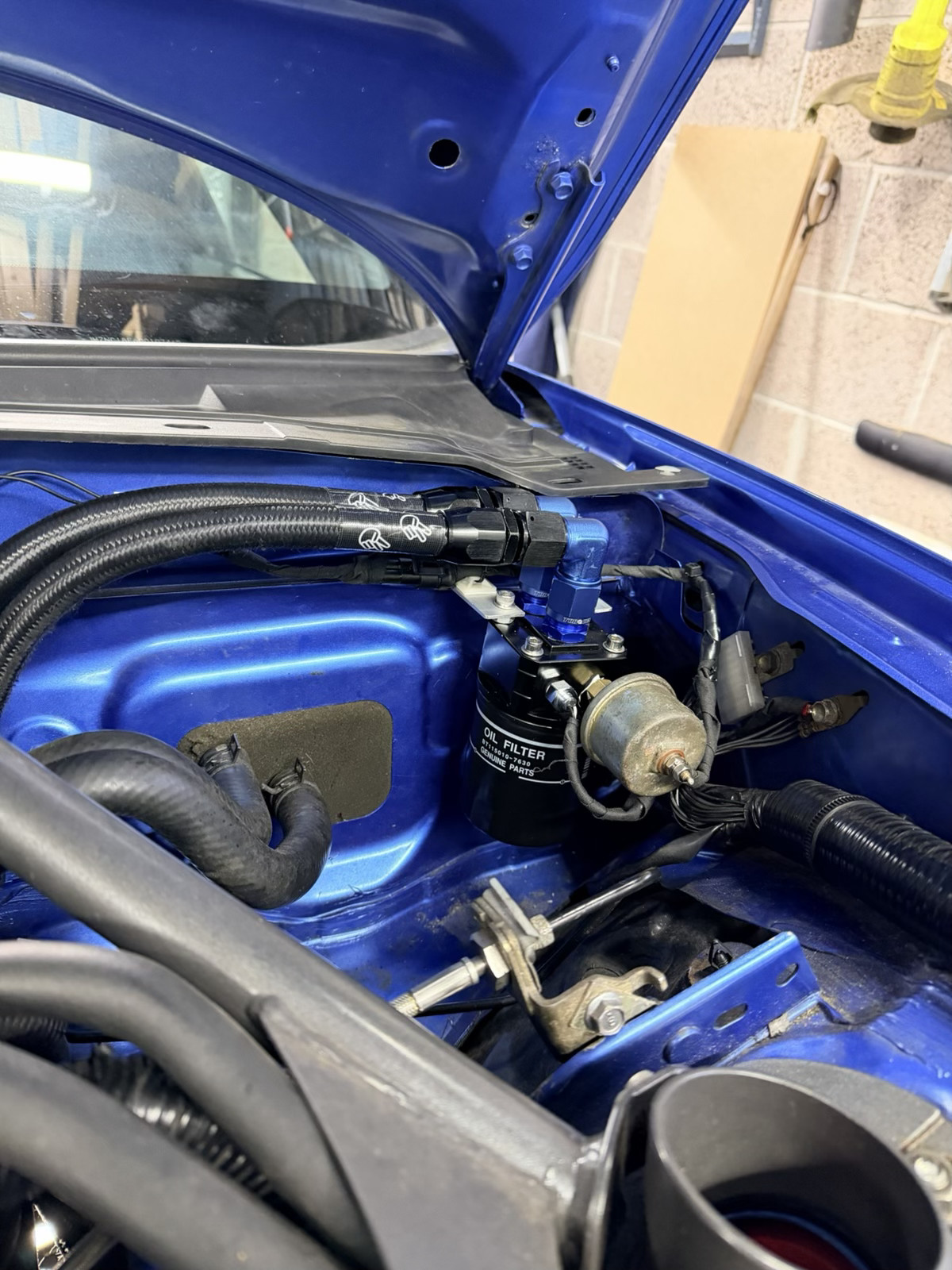

- Supports custom remote filter positioning and hose routing
- Hoses and hose-end fittings sold separately
Construction and design
The relocation arrangement provides the interfaces needed to route oil away from the original filter position and through a remotely mounted filter circuit.
Cooling performance
Relocating the filter can create packaging space for cooler hardware and make the filter easier to position within a custom oil circuit.
Fitment notes
A custom installation component. Thread, port size, filter specification, sealing method and mounting position must all be matched to the intended application. Recommended oil filter: ADT32109 (not included unless explicitly listed in the kit contents). Confirm the filter’s thread, sealing face and installation clearance before use.
Important: Do not assume universal engine compatibility. Incorrect oil routing or sealing can cause immediate loss of oil pressure; verify the complete circuit before starting the engine.
Build the oil system around the car, not the other way round.
What’s in the box?
- 1 × SKADI oil-filter relocation plate set
- Hoses and hose-end fittings not included
Hose connection diagram
View the hose connection diagram for this configuration (PDF).
For hose routing; use alongside the fitting instructions. All SKADI downloads.
