Description
A vehicle-specific 16-row thermostatic remote-filter relocation engine-oil-cooler kit for Honda CIVIC D17A, catalogued for 00/09->05/08. It combines the SKADI cooler with the hoses, fittings and oil-system hardware listed in the confirmed component record. Cooler mounting brackets are not included.
Key features
- 16-row SKADI AN-10 oil cooler
- Honda CIVIC D17A application
- Thermostatic remote-filter relocation arrangement
- Standard-filter version
- 00/09->05/08 catalogue coverage
- Cooler mounting brackets not included
Construction and design
The confirmed component record uses 7 distinct BOM lines, combining the 16-row cooler with the specified hose, fittings and remote-filter relocation hardware. As an SKO-3 kit, it does not include the vehicle-specific brackets needed to mount the cooler to the car. The thermostat begins opening at 82°C. The included SKO-027 thermostatic relocation plate has two blanked 1/8 NPT side ports, one on each side, for oil temperature/pressure gauge sensors or a turbo oil feed.
Cooling performance
The compact 16-row core adds dedicated heat-exchanger area while keeping the package manageable where installation space is limited. Thermostatic control helps reduce unnecessary cooling during warm-up and lower-load driving.
Fitment notes
Catalogued for Honda CIVIC D17A, covering 00/09->05/08. Confirm the exact engine, oil-filter interface, sealing face, centre-spigot engagement and available installation clearance before fitting. Choose a secure, accessible remote-filter position and plan the hose route before cutting and assembling the hose. SKO-3 kits do not include the brackets required to mount the cooler to the car; select a suitable airflow position and fabricate or source secure mounting brackets. The recorded filter thread is M20×1.5. Thread compatibility alone does not confirm fitment: check the sealing-face diameter, centre-spigot engagement, filter clearance and surrounding installation space. Confirm the exact engine variant before ordering.
Important: Check every BOM item against the supplied kit before installation. Keep hoses clear of exhaust heat, sharp edges and moving parts; prime the oil circuit, pressure-test it, verify oil pressure and check for leaks before driving. Mount the cooler securely and check clearance to bodywork, airflow paths and surrounding components before use.
16-row cooling configured for Honda CIVIC D17A, with the recorded hardware to build the AN-10 circuit. Run hard, run cool. Cooler mounting brackets are not included.

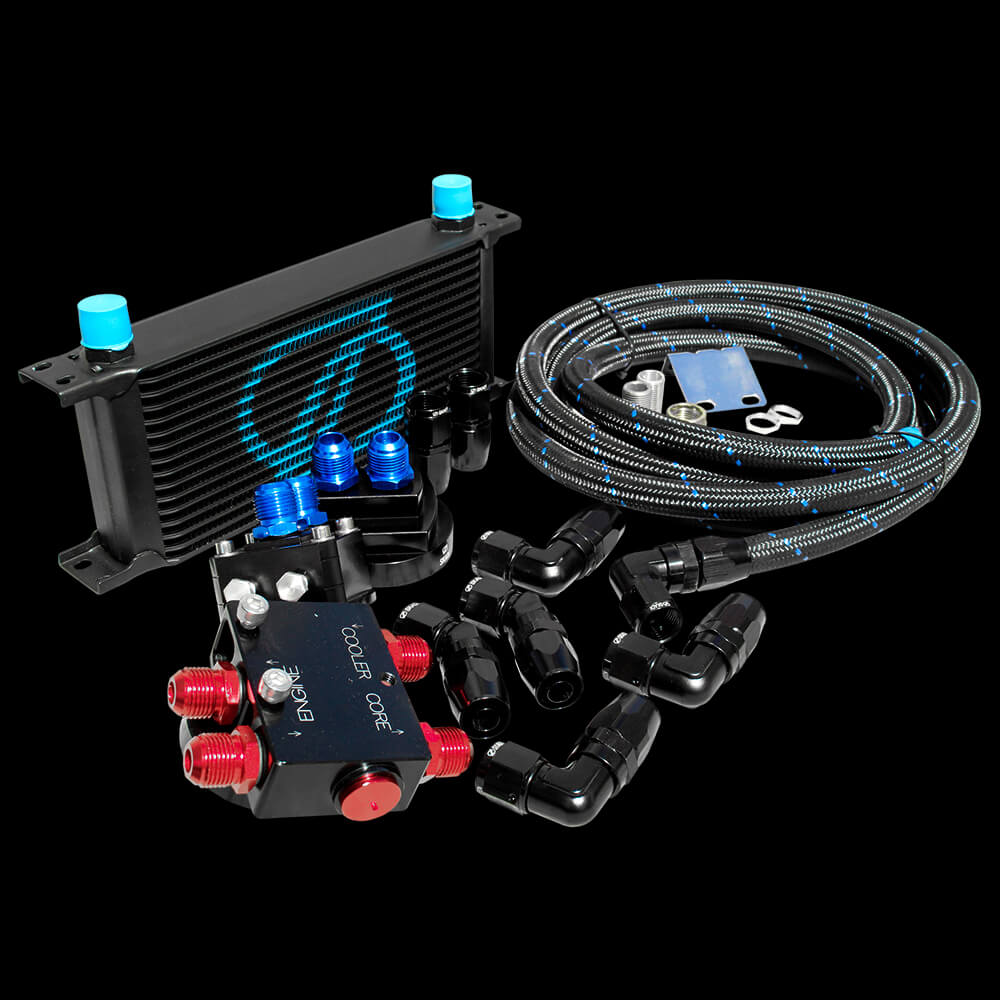

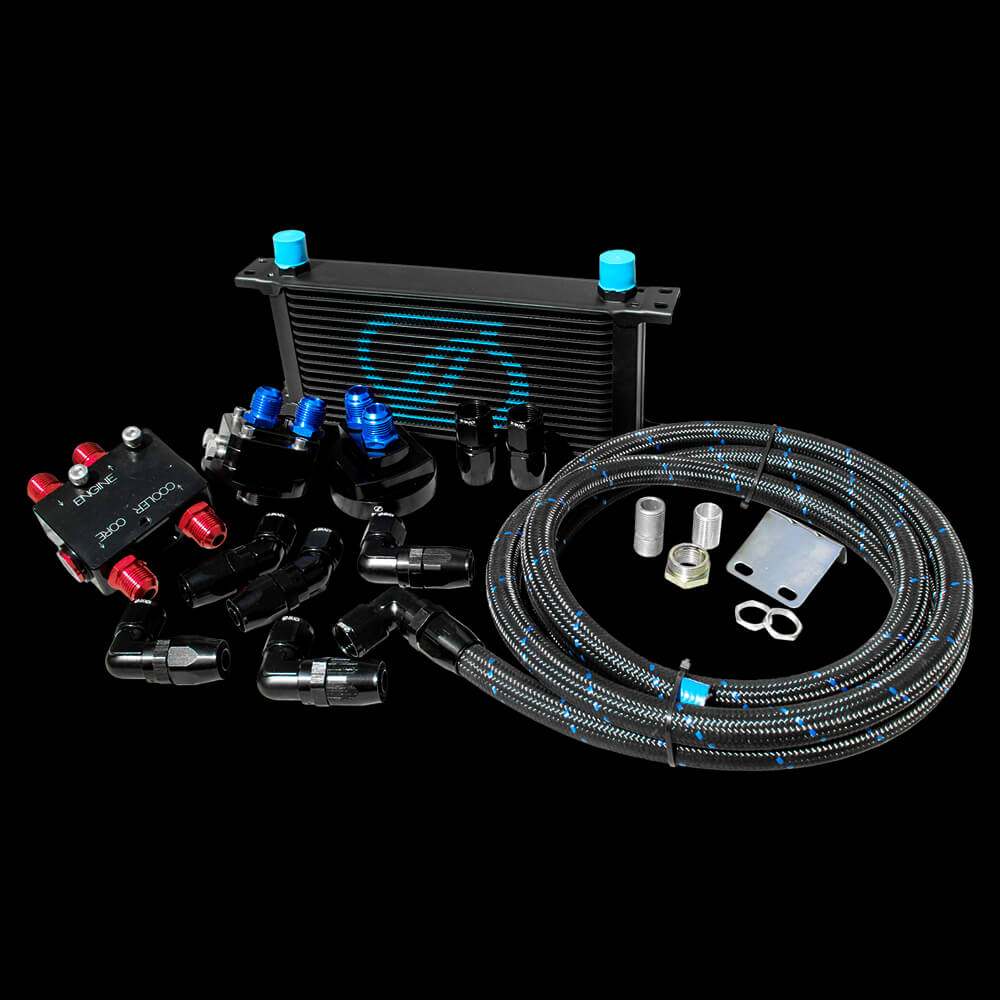

What’s in the box?

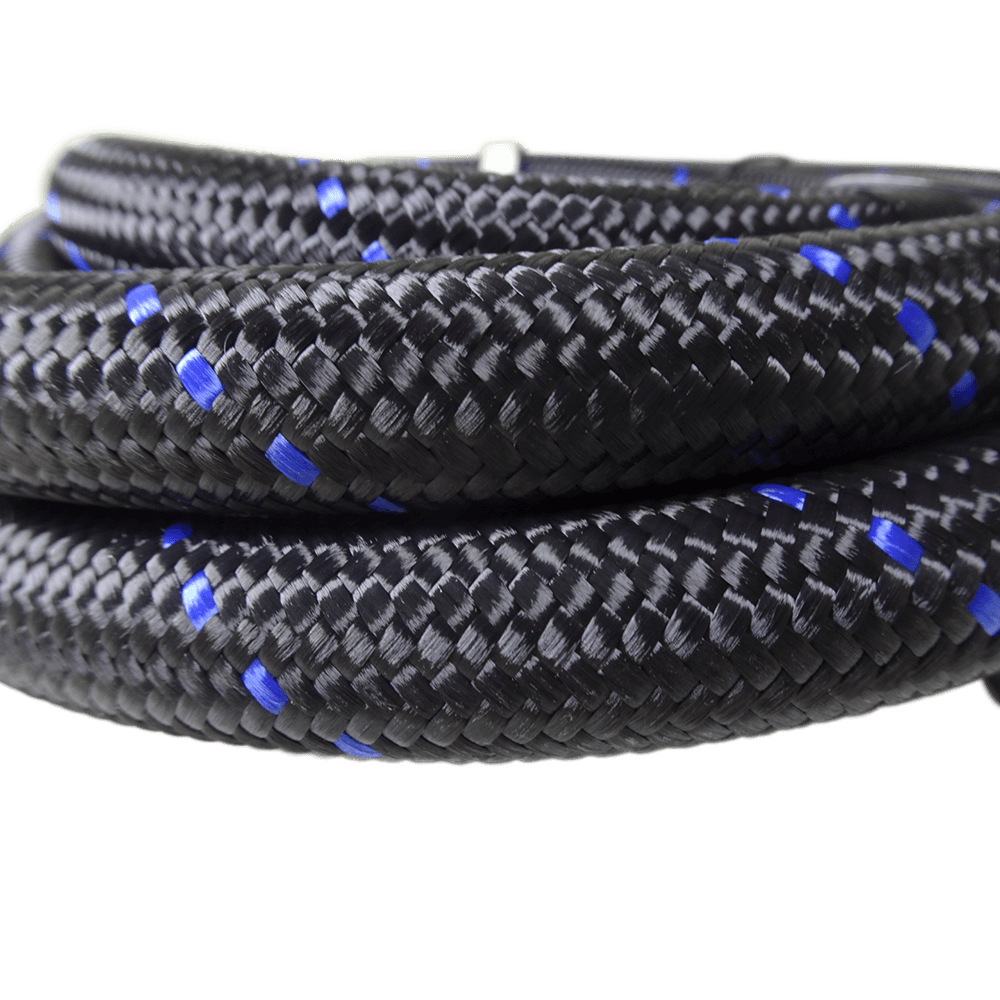

- 1 × SKADI 4m AN-10 hose, nylon with blue fleck (SKO-001)

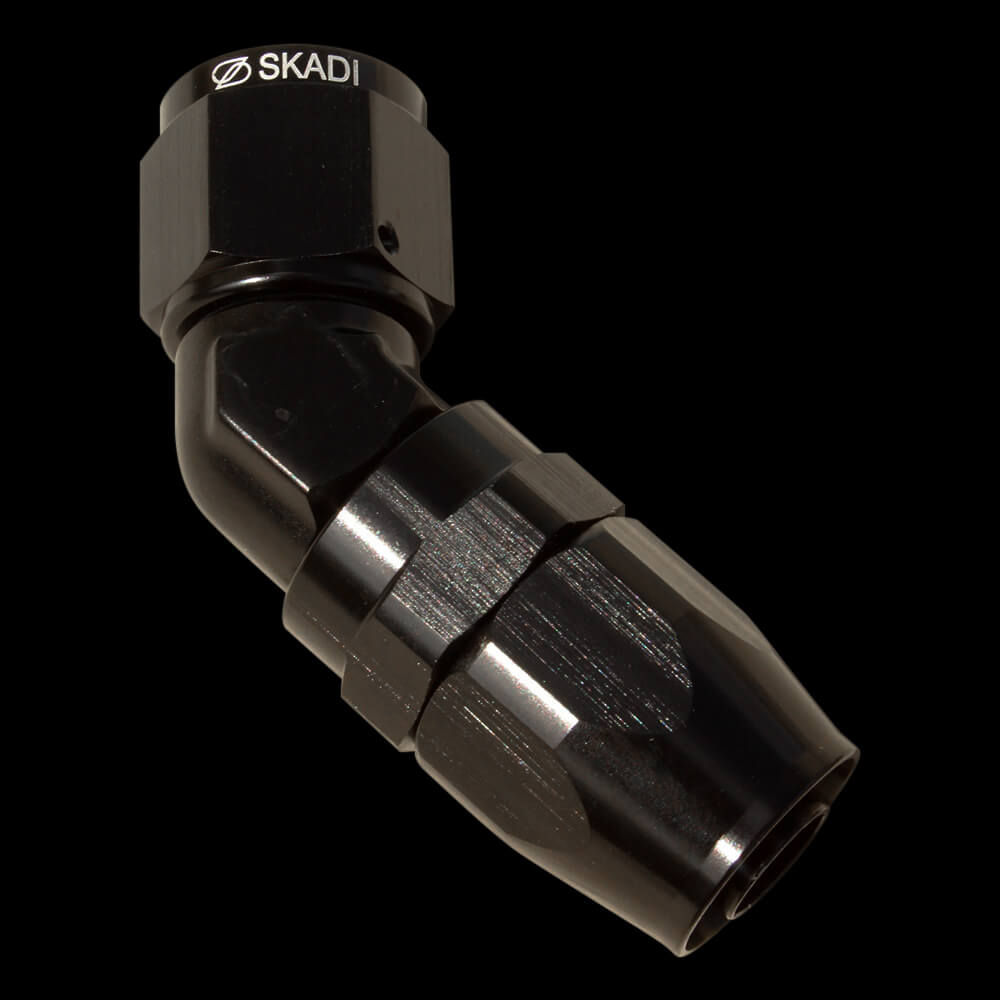

- 2 × SKADI AN-10 45 Degree Fitting Black (SKO-007)

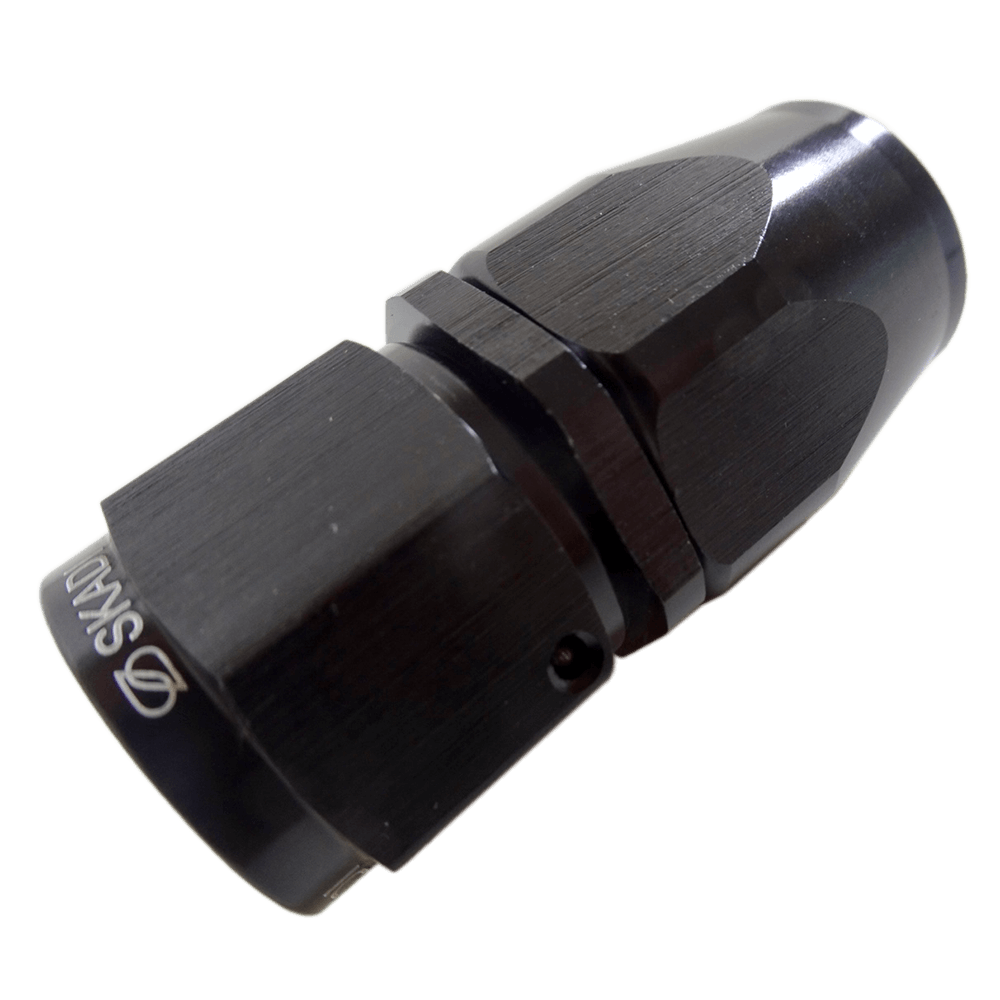

- 2 × SKADI AN-10 Straight Fitting Black (SKO-006)

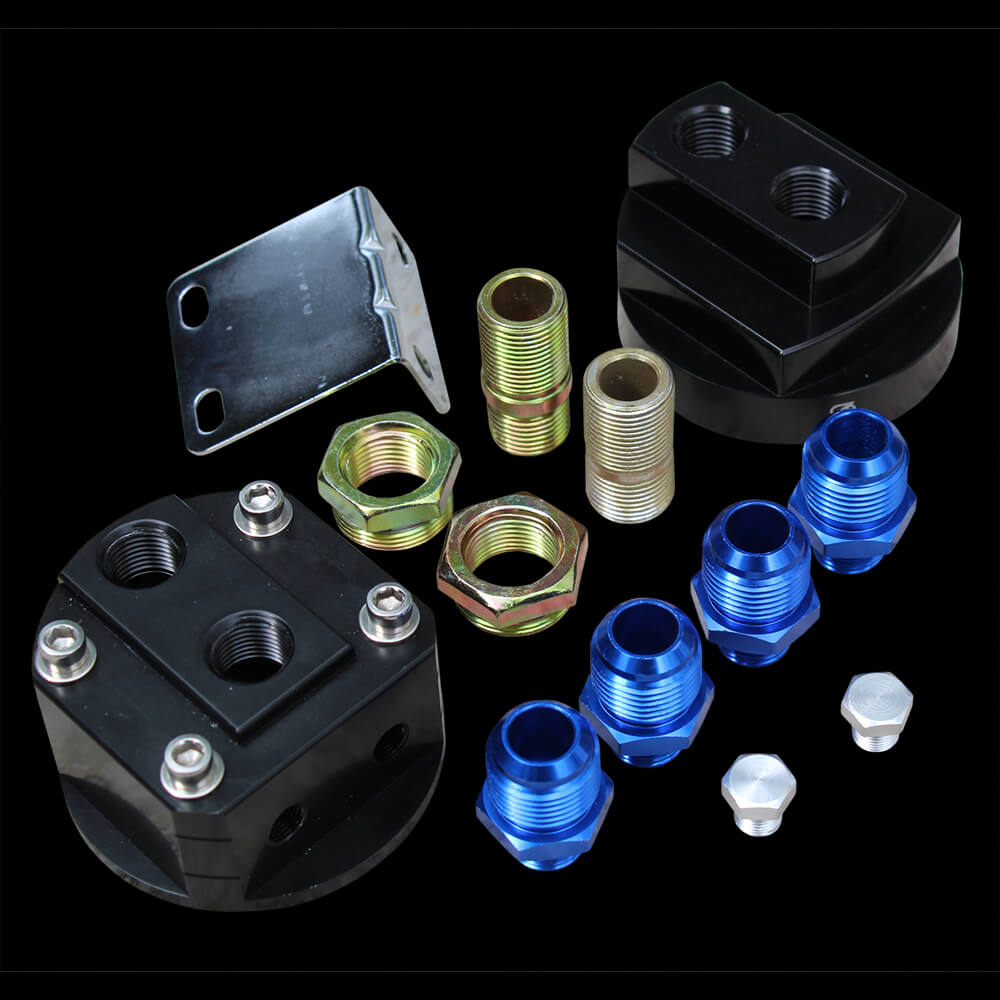

- 1 × SKADI Oil filter relocation plates (SKO-016)

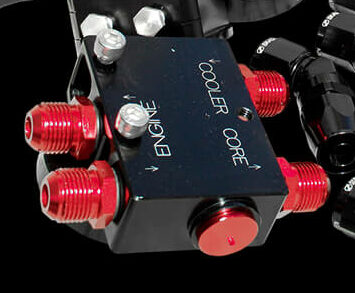

- 1 × SKADI Oil filter relocation thermoplate (SKO-027)

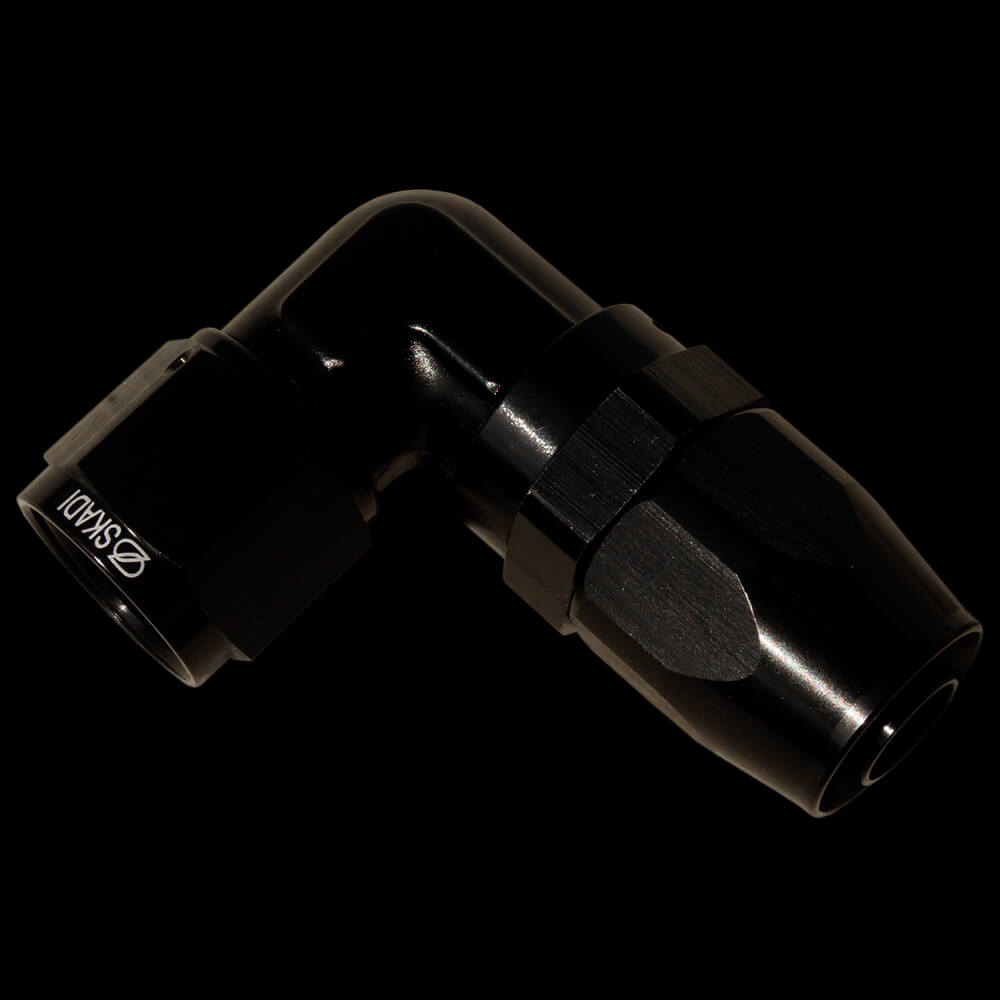

- 4 × SKADI AN-10 90 Degree Fitting Black (SKO-008)

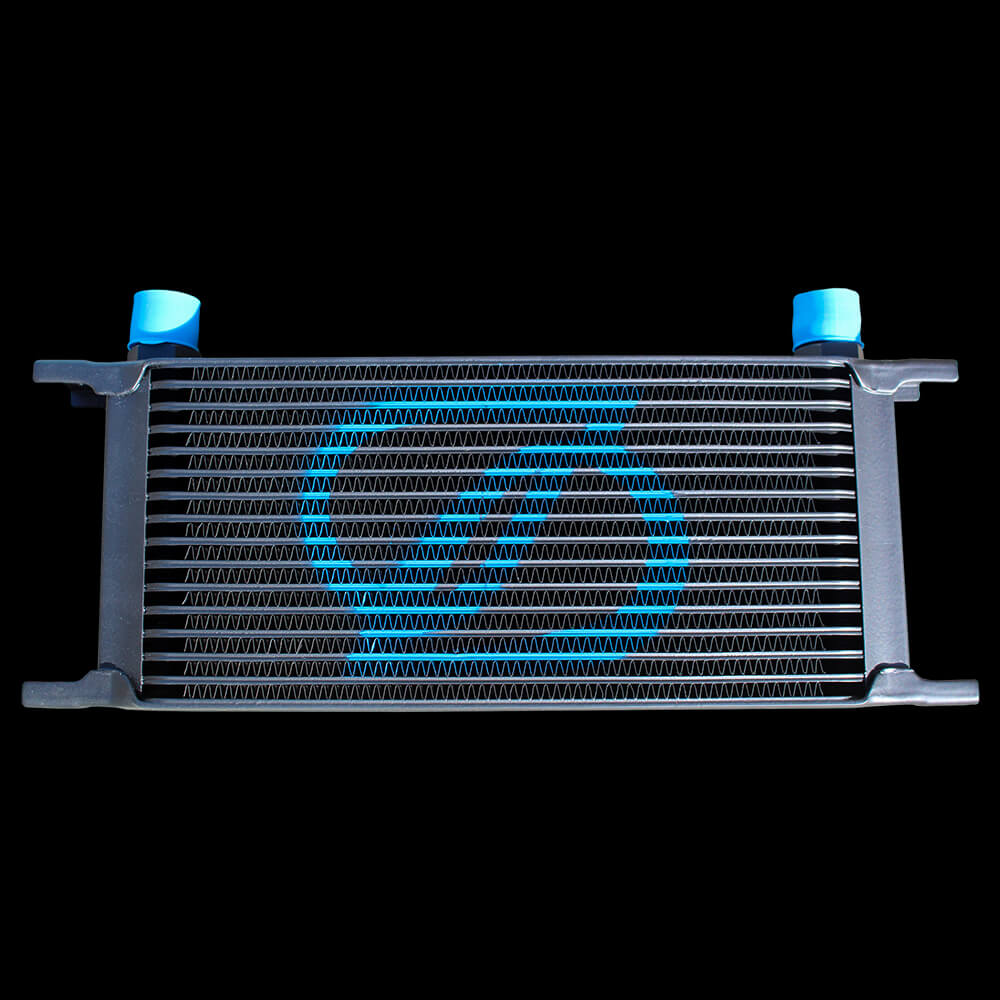

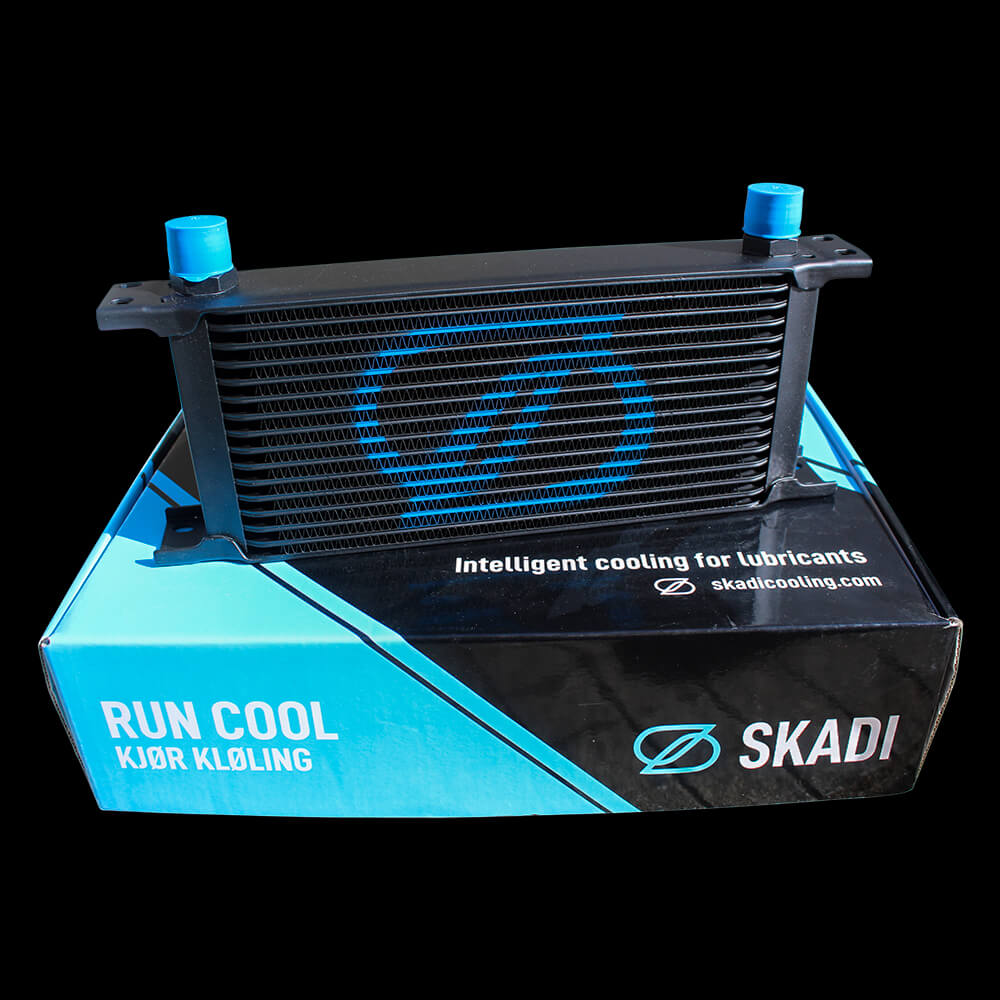

- 1 × SKADI Mocal Style Oil Cooler 16-rows, black with SKADI Logo, AN-10 (SKO-003)
Hose connection diagram
View the hose connection diagram for this configuration (PDF).
For hose routing; use alongside the fitting instructions. All SKADI downloads.
